This guide provides step-by-step instructions on how to safely disconnect and reconnect tubes that use blue safety clips.

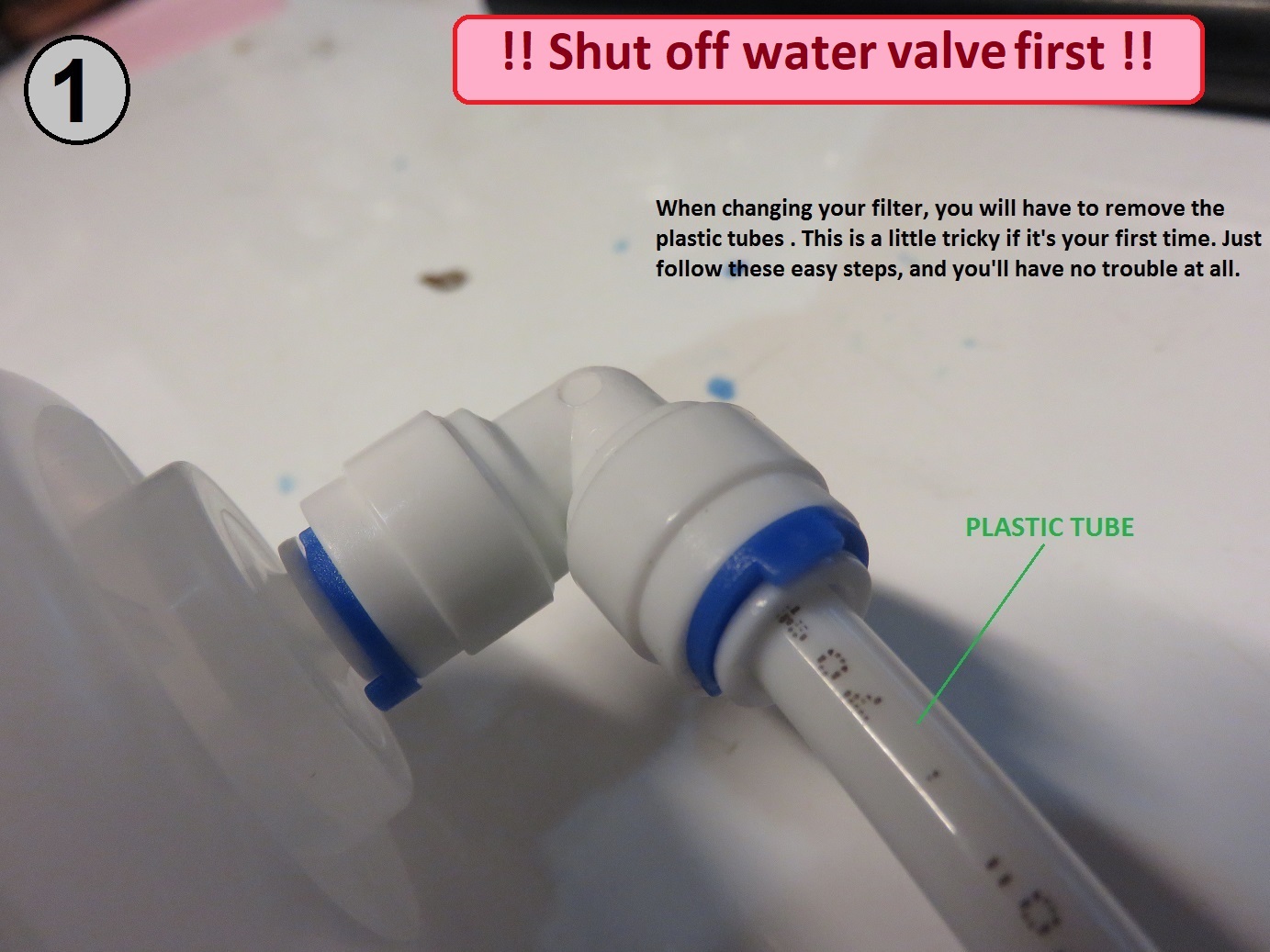

Step 1: Identify the Blue Clip

• The blue clip acts as a safety lock that prevents the tube from being pulled out of the fitting.

• It must be removed before you can release the tube.


•

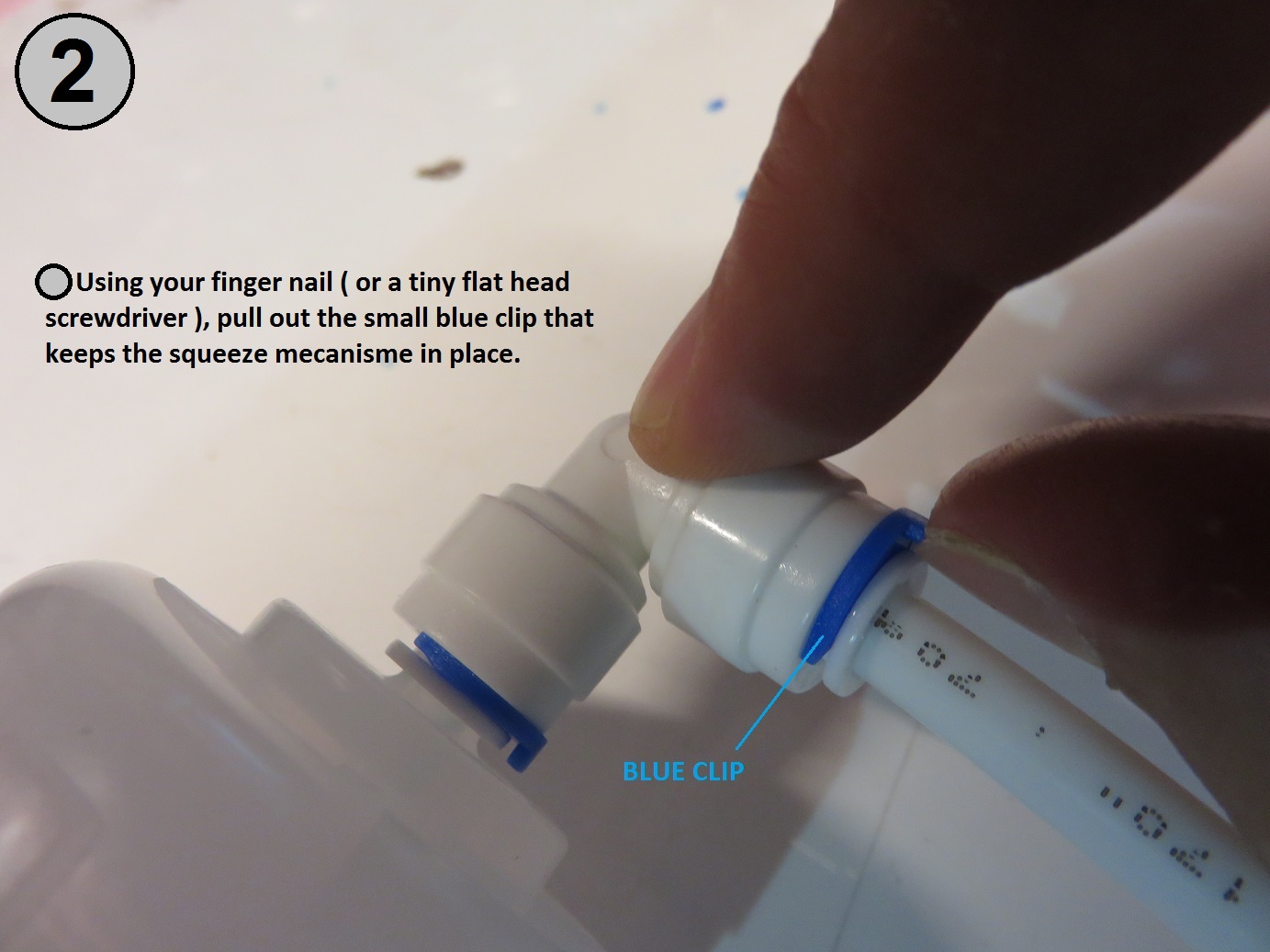

Step 2: Remove the Blue Clip

• Using your fingernail or a small flathead screwdriver, carefully pull out the blue clip from the fitting.

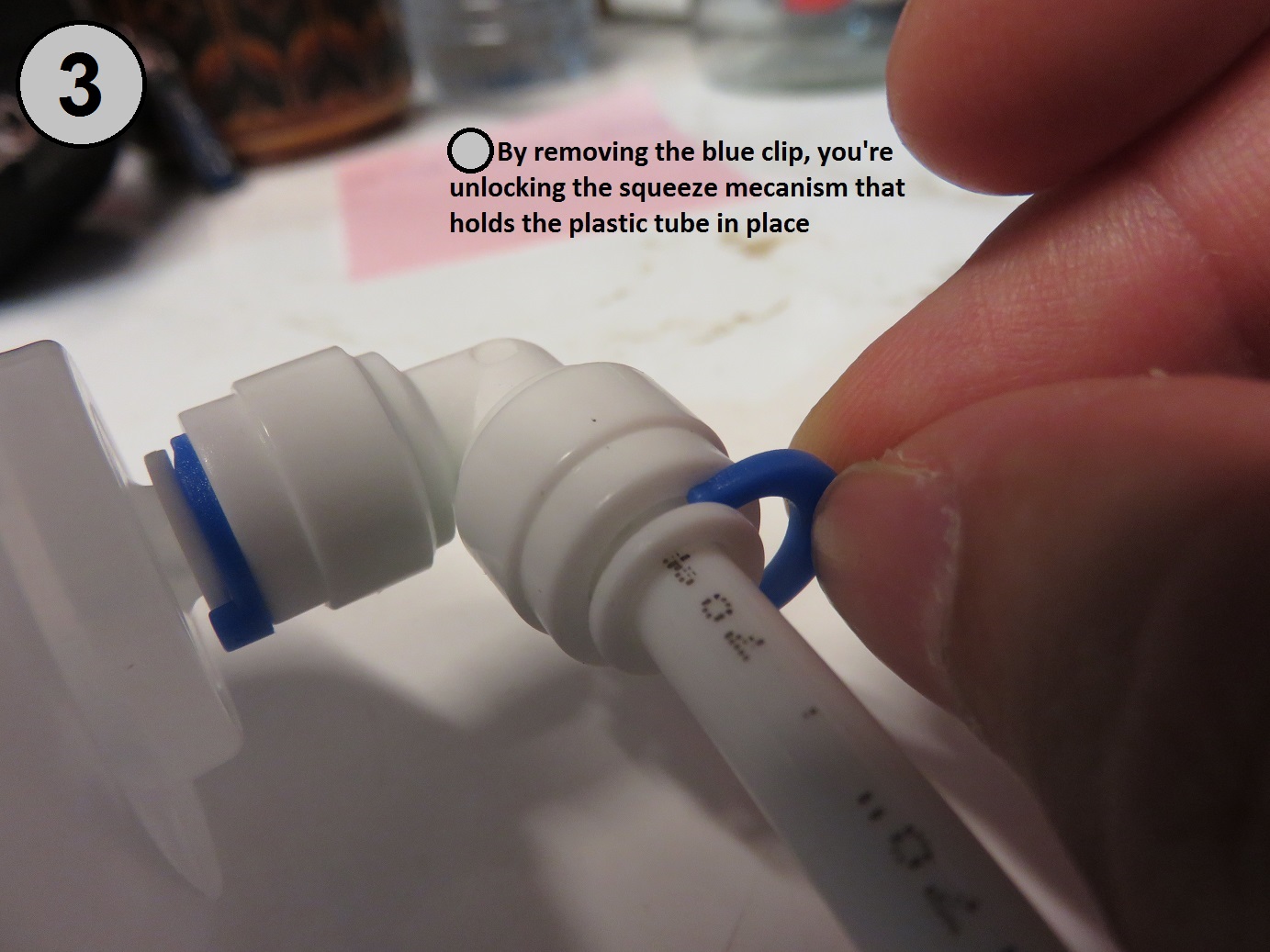

• Removing the clip unlocks the squeeze mechanism inside.


•

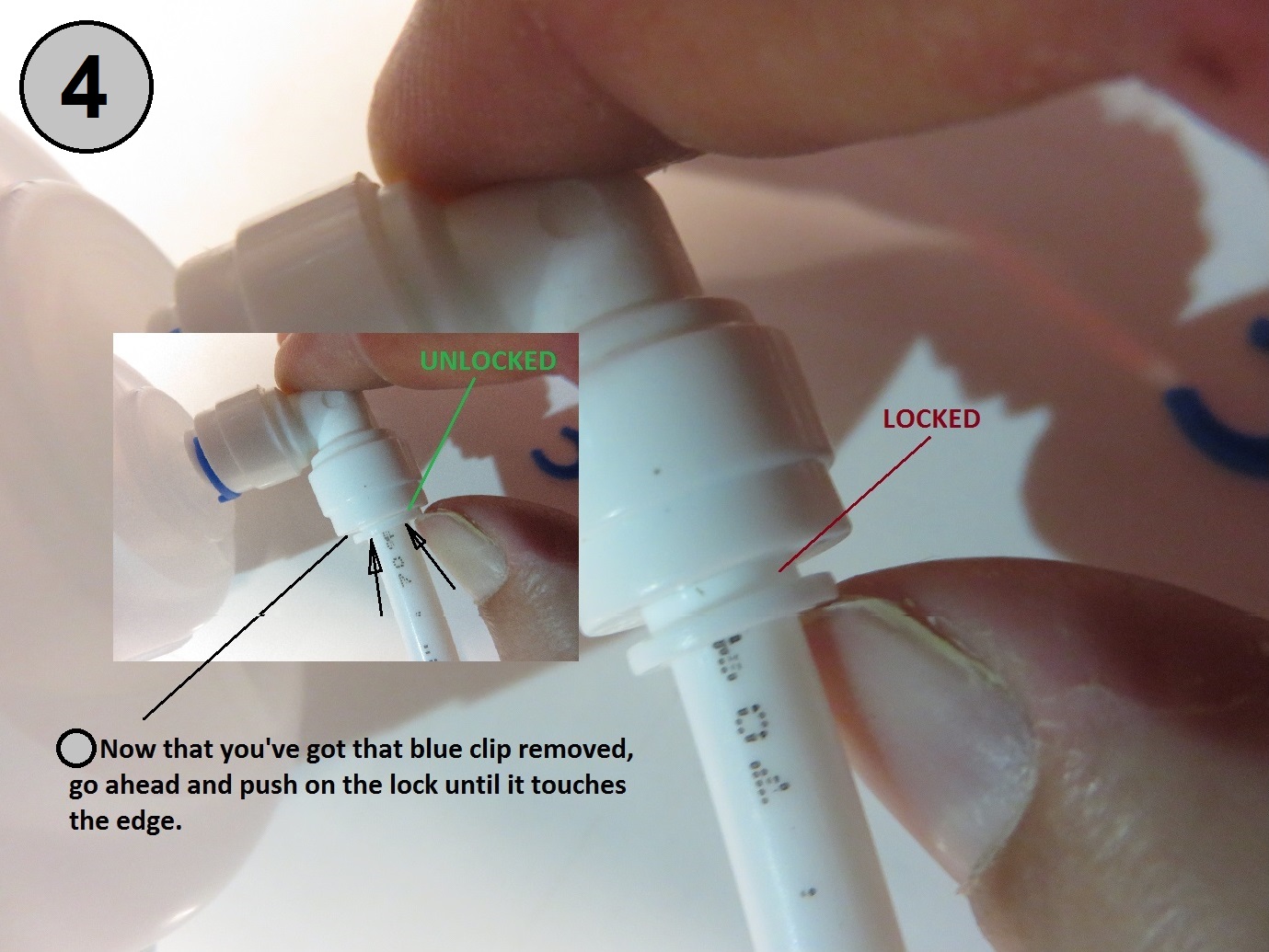

Step 3: Unlock the Mechanism

• Once the blue clip is removed, push the lock inward toward the fitting.

• This action disengages the grip holding the tube.


•

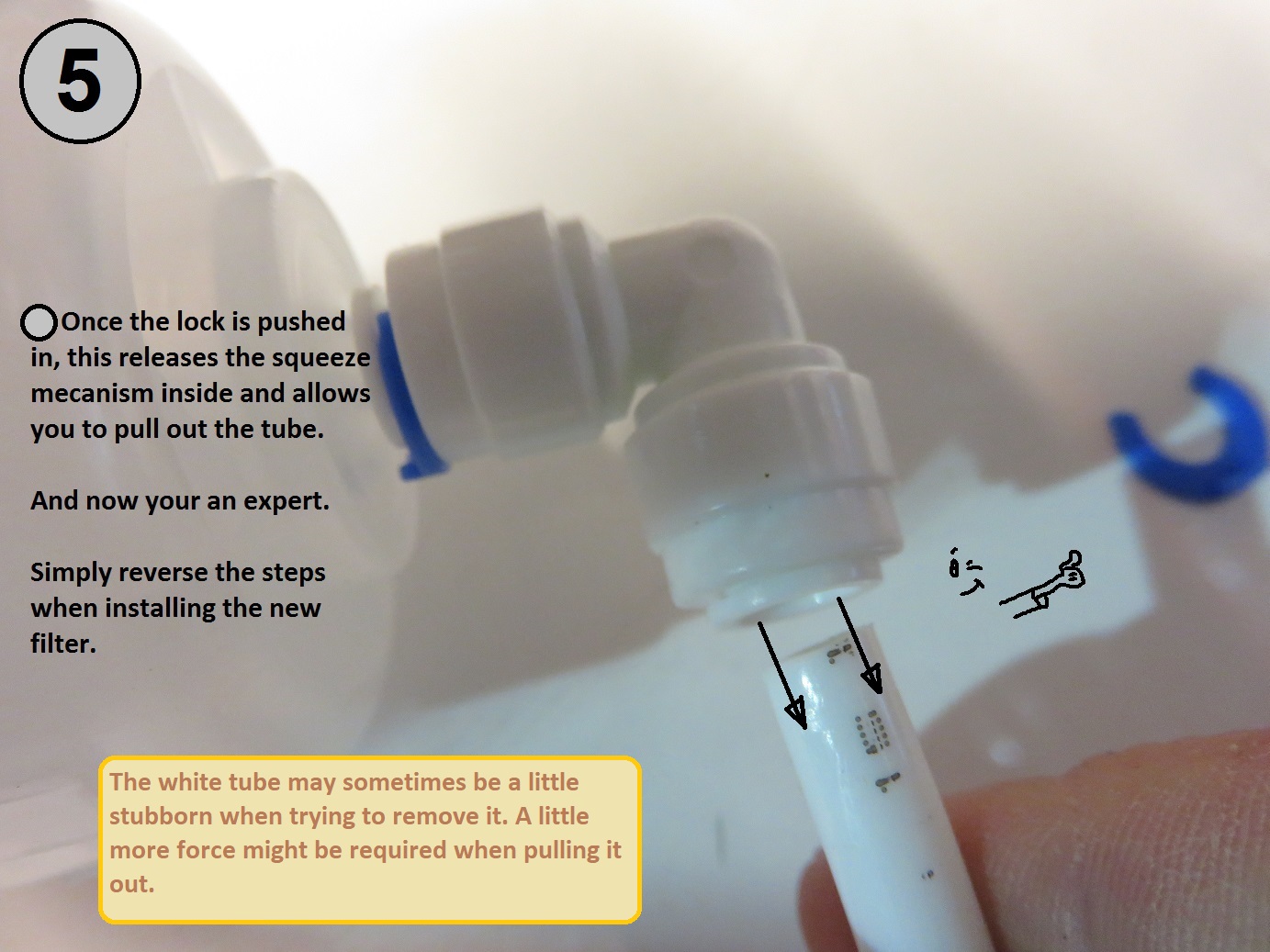

Step 4: Remove the Tube

• While holding the lock in, gently pull the tube outward to disconnect it.

• Note: The tube may sometimes be a little stubborn. If so, apply a bit more force, but avoid twisting or bending excessively.


•

•


Reinstallation Instructions

• To reconnect:

  1. Insert the tube firmly into the fitting until it is seated securely.

  2. Push the lock back into place.

  3. Reinsert the blue clip to secure the connection.

Key Reminders

• The blue clip is a crucial safety feature, always reinsert it after reconnecting the tube.

• If the tube does not slide in smoothly, check for debris or damage before forcing it.

By following these steps, you can safely and effectively disconnect and reconnect tubing with blue clips.
