Potential Root Causes for Fire Die Outs
Fire die outs in gas-powered fireplace can occur due to various reasons. This knowledge article aims to identify and explain potential root causes for fire die outs, along with their respective solutions. By understanding these causes and taking appropriate actions, users can effectively troubleshoot and prevent fire die outs.

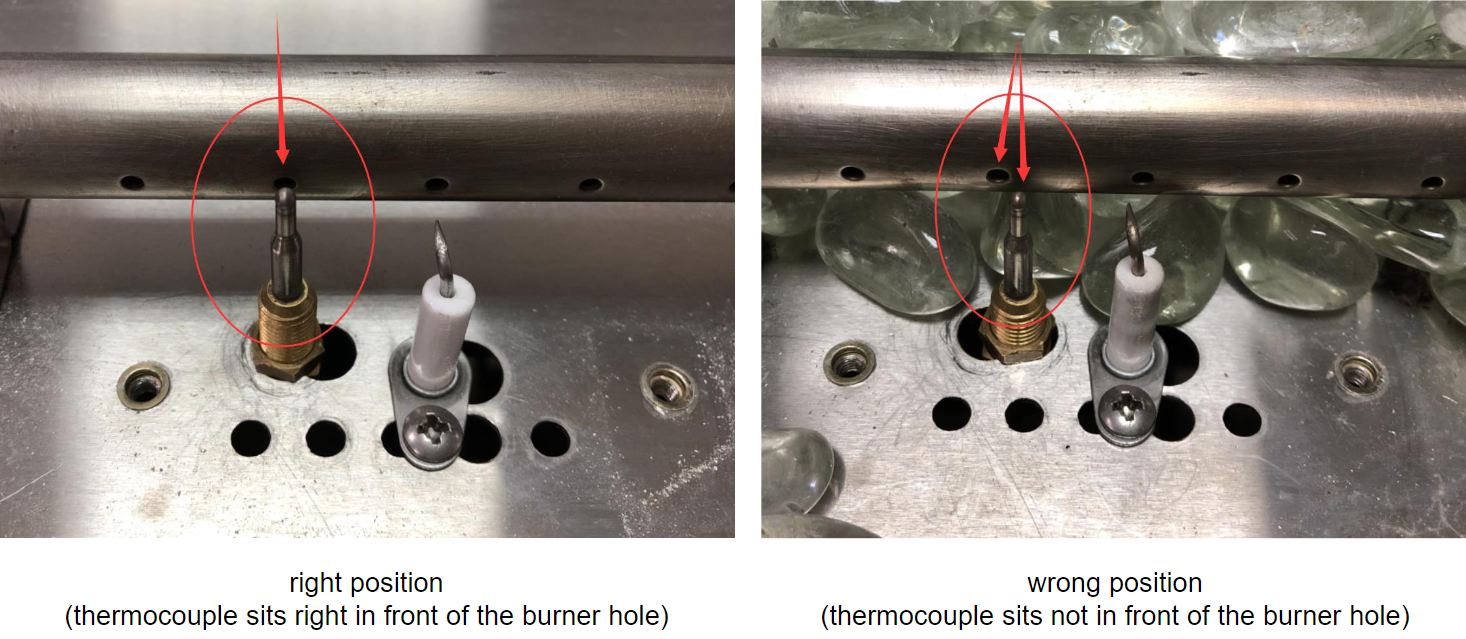

Thermocouple in the Wrong Position:
Cause: When the thermocouple is incorrectly positioned, it fails to sense the temperature emitted by the burner. Consequently, the fire will extinguish soon after ignition.
Solution: Adjust the thermocouple to the correct position by loosening the nut or adjusting the burner using the provided screws.

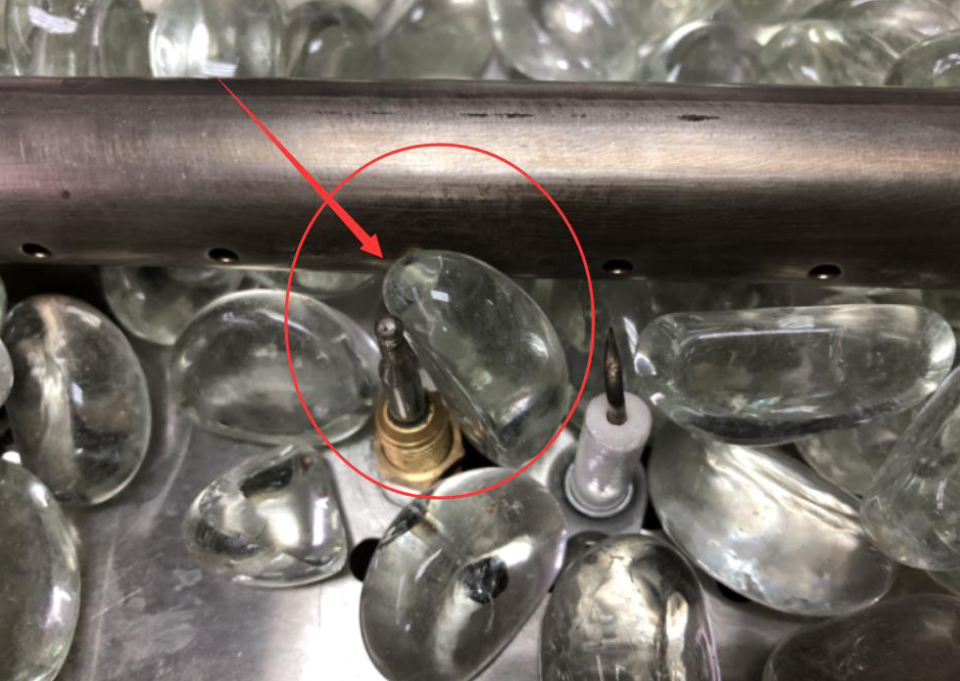

Glass Beads or Lava Rocks Blocking the Thermocouple and Burner Hole:
Cause: Glass beads or lava rocks entering the wind guard can obstruct the path between the thermocouple and the burner hole. This obstruction prevents the thermocouple from accurately sensing the burner's temperature, resulting in a fire die out shortly after ignition.
Solution: Remove the wind guard and carefully clear any glass beads or lava rocks that may be blocking the thermocouple and burner hole.

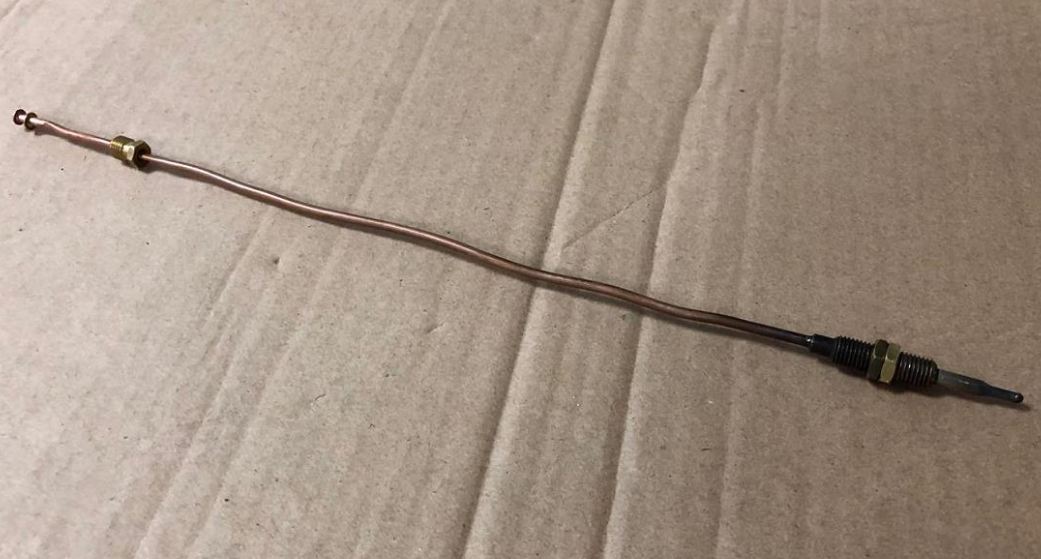

Broken Thermocouple:
Cause: If the thermocouple is broken, it will cease to function properly. A malfunctioning thermocouple fails to sense the temperature emitted by the burner, leading to a fire die out after ignition.
Solution: Replace the broken thermocouple with a new and functioning one.
Releasing Control Knob Too Fast During Ignition:

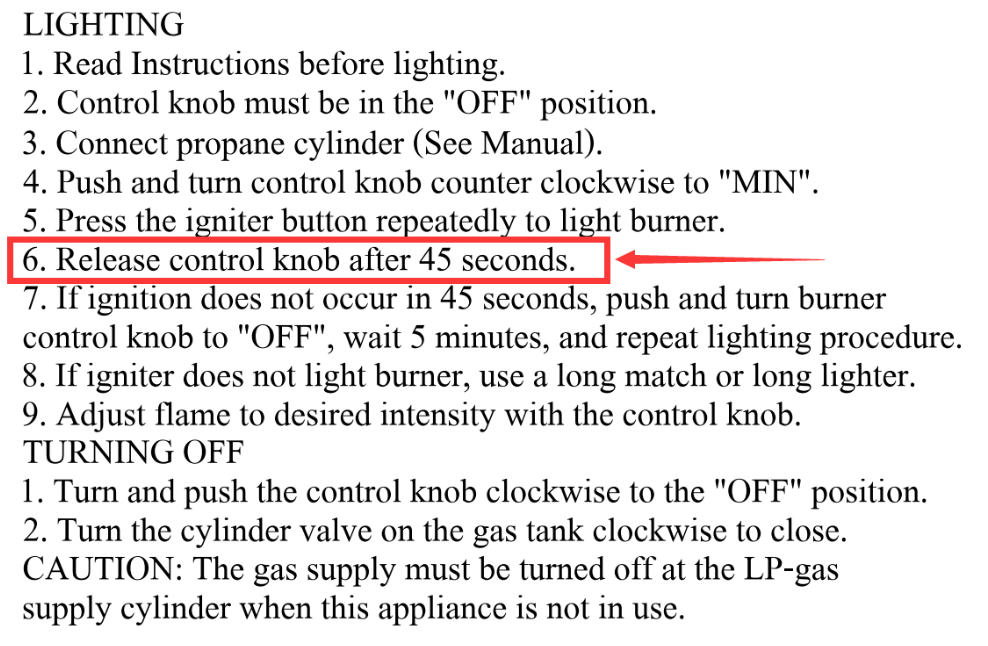

Cause: Following the lighting instructions on the control panel, it is crucial to press and hold the control knob for at least 45 seconds. Releasing the control knob too quickly restricts the flow of gas from the gas bottle to the burner, preventing the thermocouple from accurately sensing the burner's temperature. As a result, the fire will extinguish shortly after ignition.
Solution: Adhere to the lighting instructions and release the control knob only after a minimum of 45 seconds.

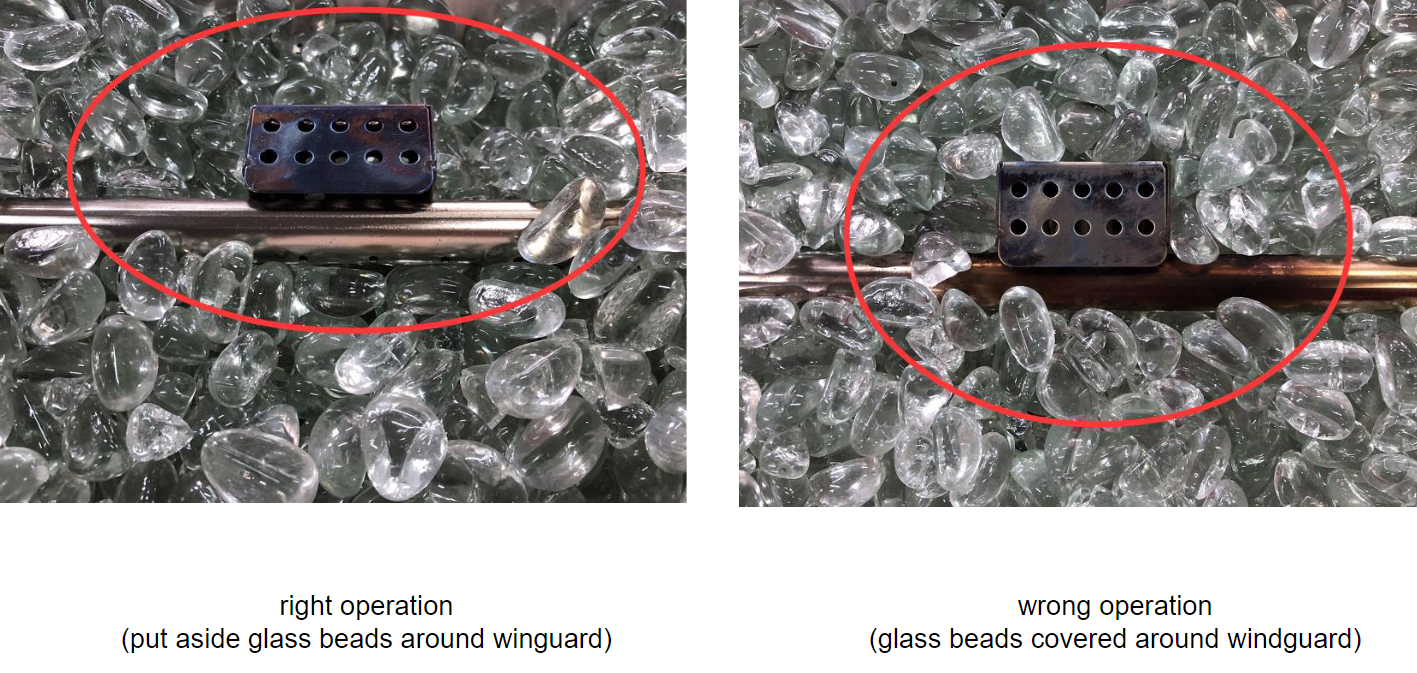

Glass Beads or Lava Rocks Covering the Wind guard:
Cause: When glass beads or lava rocks cover the wind guard, they impede the airflow and reduce the oxygen supply inside the wind guard. This reduction in oxygen gradually diminishes the fire, eventually leading to a fire die out.
Solution: Ensure that there is sufficient space around the wind guard, allowing for proper air circulation. Encourage users to remove any glass beads or lava rocks that may accumulate around the wind guard. Provide clear instructions in the user manual regarding this precautionary measure.
Identifying the potential root causes for fire die outs is crucial in maintaining the optimal functioning of gas-powered devices. By understanding these causes and implementing the recommended solutions, users can prevent fire die outs and enjoy the safe and consistent operation of their devices.
