1. Tools and Materials Needed:

• Pencil
• Measuring tape
• Level
• Silicone
• Drill
• Adjustable wrench
• Hole saw

2. Installation Steps:

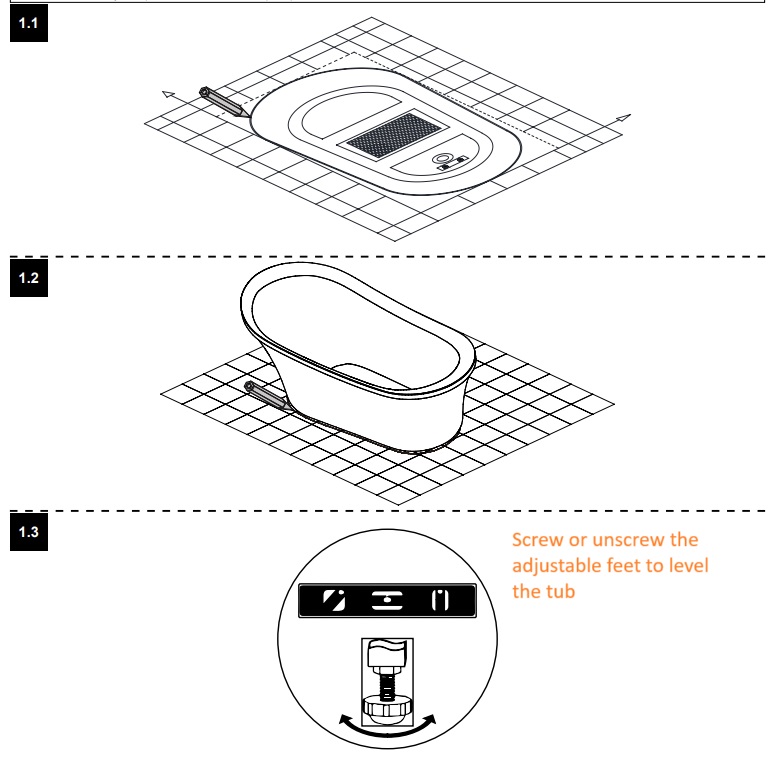

Step 1: Positioning the Bathtub

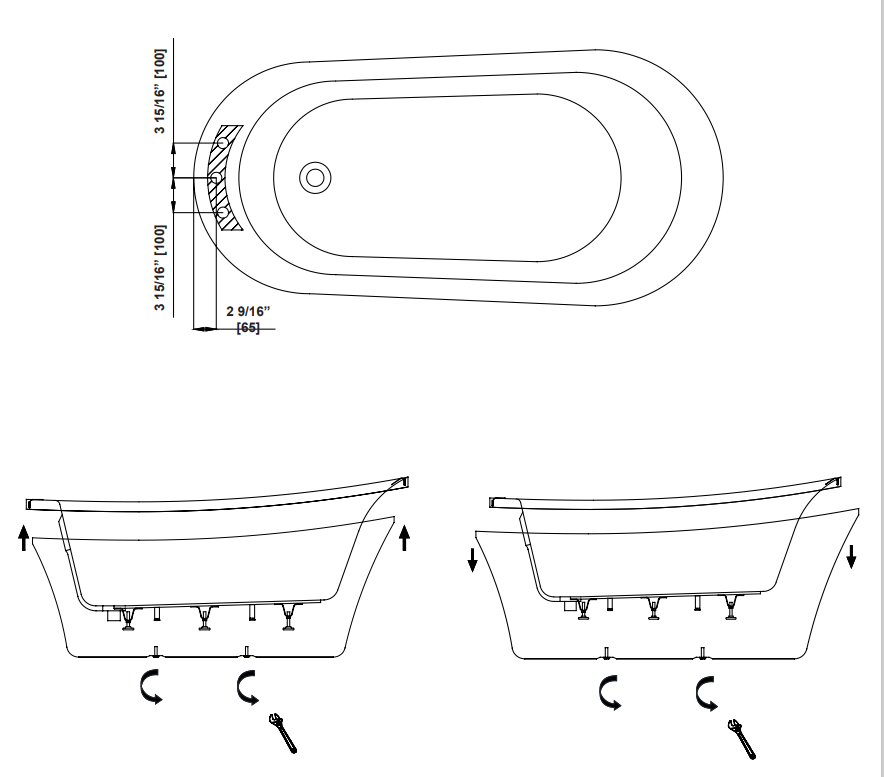

1. Use the floor tracing template from the manual to mark the location of the water supply pipes, drain, and P-trap.
2. Place the bathtub in the desired location and use adjustable feet to level it.
3. Remove the tub and put it on a protective fabric to avoid damage.


Step 2: Faucet Installation on the bathtub (Optional)

1. Stick masking tape to the area where you’ll drill to prevent chipping.
2. Drill the holes for the faucets and install according to the manufacturer’s instructions.
3. Connect the supply lines for hot and cold water and check for leaks.

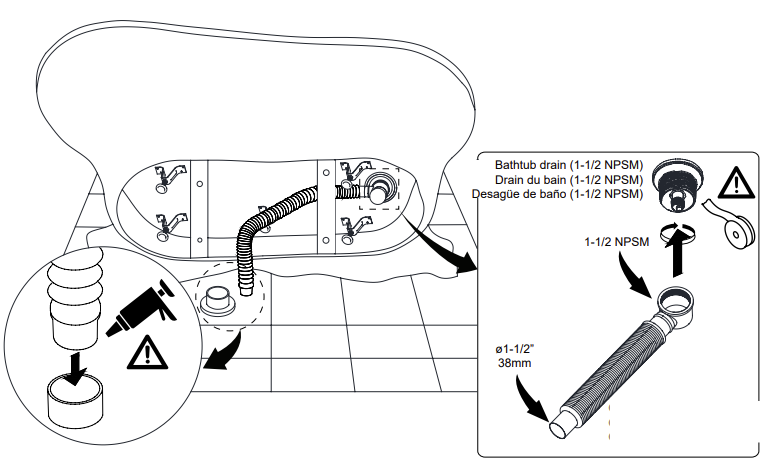

Step 3: Drain and Piping Connection Option 1: Using Flexible Pipe

• Screw the flexible pipe onto the pre-installed bathtub drain using Teflon tape or thread sealant.
• Connect the flexible pipe to the existing floor drain using PVC pipe sealant.

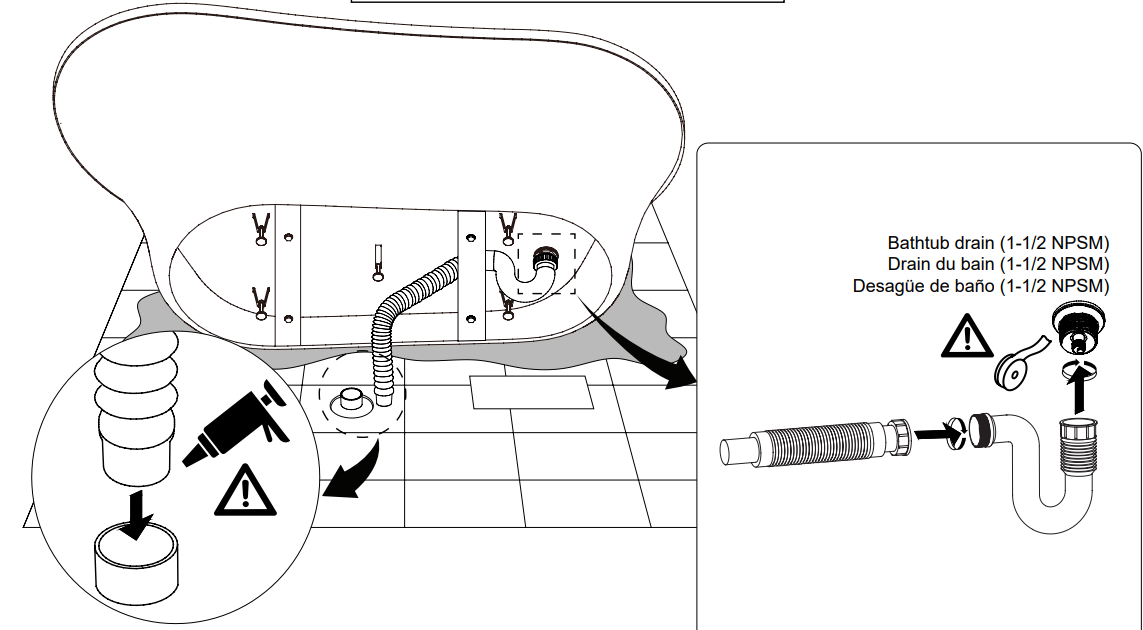

Option 2: Using Flexible P-Trap, not included)

• Screw the P-trap onto the bathtub drain using Teflon tape or thread sealant.
• Connect the flexible tube to the floor drain.

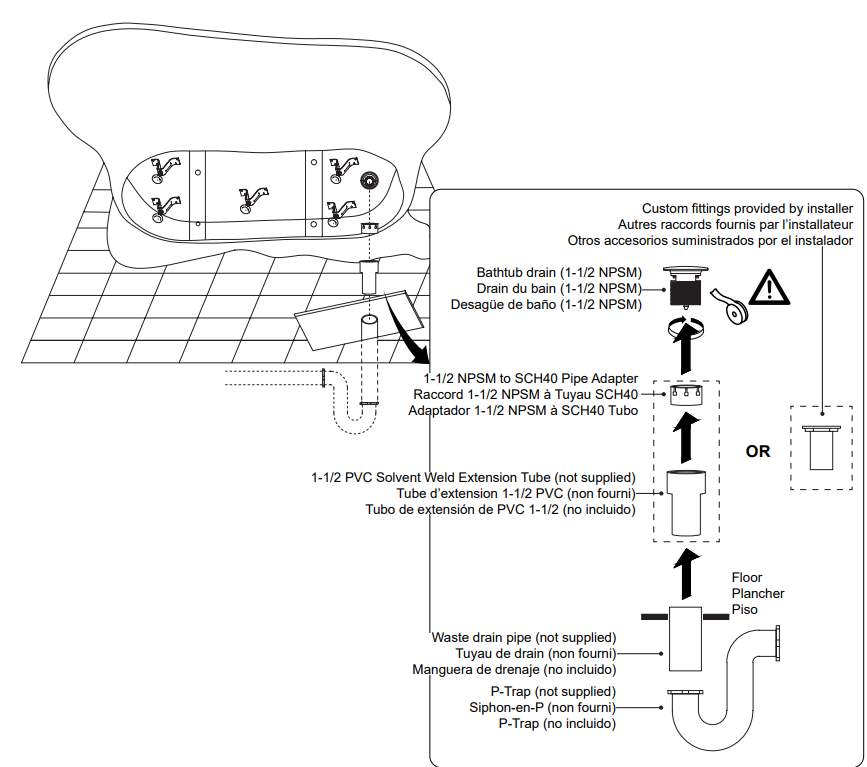

Option 3: Using Regular PVC Piping

• Apply Teflon tape and thread sealant to the bathtub drain.
• Screw the provided adapter and connect a PVC extension tube cut to the desired length to the floor drain.


Step 4: Sealing the Bathtub

1. Fill the bathtub with water, let it drain, and check all plumbing for leaks.
2. Fix the tub to the floor with adhesive under the edges and feet.
3. For a professional finish, apply a bead of silicone around the base of the tub and let it dry for 24 hours.

Maintenance Tips:

• Clean with a lukewarm, wet cloth.
• Avoid abrasive cleaners, bleach, or metallic brushes to protect the surface.

This guide ensures a smooth installation while keeping your tub in perfect condition for years to come​
