How to Adjust the Kingston/Sydney Wheel for Optimal Performance

How to Adjust the Kingston/Sydney Wheel for Optimal Performance

Introduction

Proper adjustment of the wheels in sliding door systems is crucial for smooth operation and longevity. This article provides a step-by-step guide on how to adjust the Kingston/Sydney wheel for the best performance.

Tools Required:

  1. Two Allen key

Instructions:

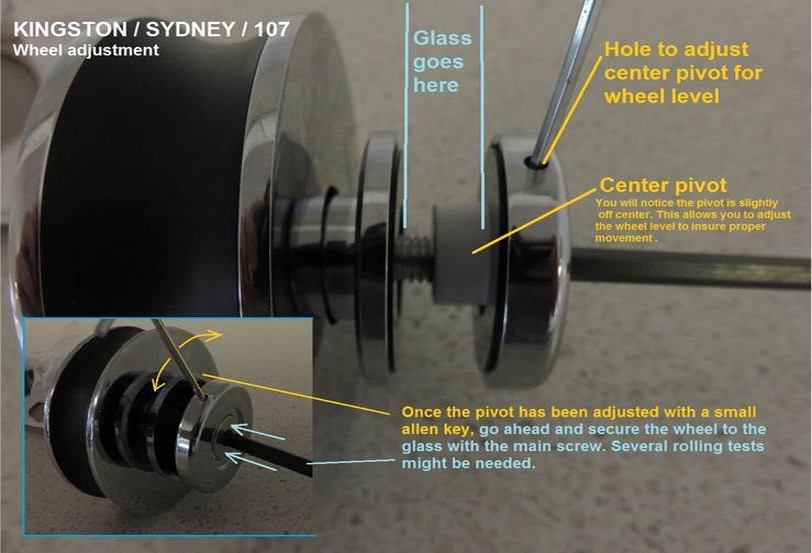

Step 1: Locate the Wheel Adjustment Section

Identify the wheel adjustment area. This is typically found near the center pivot of the wheel assembly.

Step 2: Adjust the Center Pivot

The center pivot is intentionally designed to be slightly off-center. This feature allows you to adjust the level of the wheel for proper movement.
  1. Hole to Adjust Center Pivot for Wheel Level**: Find the hole which is meant for adjusting the center pivot. It's crucial for ensuring the wheel is level, which is necessary for the smooth operation of the door.

Step 3: Fine-Tuning

  1. Use the hole provided to adjust the center pivot until the wheel is level. This may require a few tries to get it just right.

Step 4: Secure the Wheel

  1. Once the pivot has been adjusted with a small Allen key, secure the wheel to the glass with the main screw. This step is vital for maintaining the adjustments made and ensuring the integrity of the wheel's position.

Step 5: Perform Rolling Tests

  1. It’s advisable to conduct several rolling tests to ensure the wheel moves smoothly. This may highlight if further adjustment is necessary.
Adjusting the Kingston/Sydney wheel is a precise but straightforward process. Following these steps will ensure that your sliding door operates smoothly and efficiently. Always remember to perform rolling tests after adjustments to validate the performance. Regular maintenance and checks will prolong the life and functionality of your sliding door system.
