To ensure a proper fit for your Breeze corner shower, follow these steps to obtain the correct measurements for your shower space.

Step 1: Measure Your Shower Space

  1. Measure the Width:

    • Use a tape measure to determine the width of your shower area from one wall to the opposite wall.

  2. Measure the Depth:

    • Measure the depth from the back wall to the front edge where the shower base will sit.

  3. Check Corner Fit:

    • If installing in a corner, measure the distance from the corner of the walls to confirm that the space can accommodate the shower base.

Step 2: Determine the Shower Size

Identify the shower size you have selected: 32", 34", 36", or 38".

Step 3: Reference the Measurement Table

Refer to the provided measurement table for specific dimensions corresponding to your chosen shower size. Each measurement corresponds to a specific part of the shower:

  • For example, measurement D (highlighted in orange) indicates the distance from the corner to the very front edge of the round surface of the shower.

Use the color-coded table and arrows to match each measurement to its corresponding part of the shower. This will help ensure that you have the correct dimensions for a successful installation.



Important Alert: Drain Hole Positioning

Alert
When installing your Breeze corner shower, the distance from the corner to the center of the drain hole on the floor is critical. This measurement is essential for ensuring proper drainage and alignment with your plumbing system. (E)

Note for Tile Installations:

Info
If you choose to install tiles for the shower walls instead of using acrylic panels, it is important to measure the distance from the surface of the finished wall to the center of the drain hole. This will help maintain accurate drain alignment and prevent any installation issues.

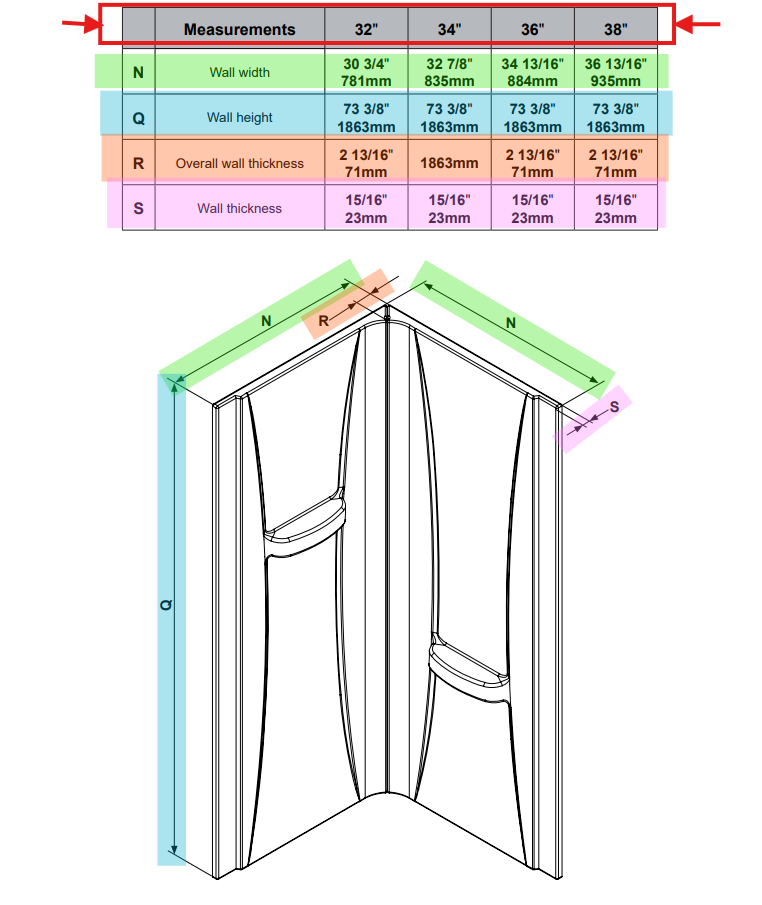

Step 4: Measurements of the Wall Panels




Step 5: Overall Shower Dimensions


By following these steps, you can confidently obtain the measurements needed for your Breeze corner shower installation and prepare for the installation of the wall panels.
